Luban Rotomold manufactures heavy-duty, seamless, one-piece rotational-moulded battery enclosures designed for harsh outdoor and marine environments. Whether you need a robust PE Single-Layer Battery Box for cost-effective weight efficiency or a double-wall foam-filled housing for extreme thermal protection, our plastic battery housings offer superior durability, absolute insulation, and unmatched corrosion resistance.
Why Rotomolded Plastic Battery Enclosures?
Five structural advantages set rotational moulding apart from sheet-metal and fibreglass alternatives when it comes to housing battery cells for demanding real-world deployment — and every one of them derives directly from the physics of the moulding process itself, not from a coating, a sealant, or a post-processing step.
1. Inherent electrical insulation
Whether opting for a standard PE Single-Layer Battery Box or a double-wall configuration, polyethylene is naturally non-conductive. This eliminates the risk of short-circuits caused by cell bumping or contact with the box walls — significantly reducing secondary safety hazards from battery thermal runaway without needing any extra insulation coatings.
2. Absolute seamless waterproofing (IP67 grade)
Traditional sheet-metal boxes rely on welding seams, and FRP (Fibreglass Reinforced Plastic) boxes use adhesive joints — both are prone to water leakage over time due to thermal expansion or salt-spray corrosion. Our one-piece rotomoulding technology ensures a 100% seamless structure for every PE Single-Layer Battery Box we produce, making it easy to achieve an IP65 or IP67 waterproof rating out of the mould.
3. Marine-grade corrosion & salt-spray resistance
- Anti-corrosion — perfect for coastal and marine applications. While metal rusts within 3-5 years, our LLDPE single-layer battery boxes withstand long-term seawater vapour and moisture.
- Weather resistance — high UV-stabilised formulas ensure 10+ years of outdoor exposure without cracking or ageing. Operates stably from -40 °C to +80 °C.
- High impact toughness — resists heavy impacts during marine transport and rough handling without cracking (like FRP) or permanently deforming (like sheet metal).
4. Flexible structure: single-layer vs. double-wall
To meet diverse engineering requirements, Luban supports two core structural designs:

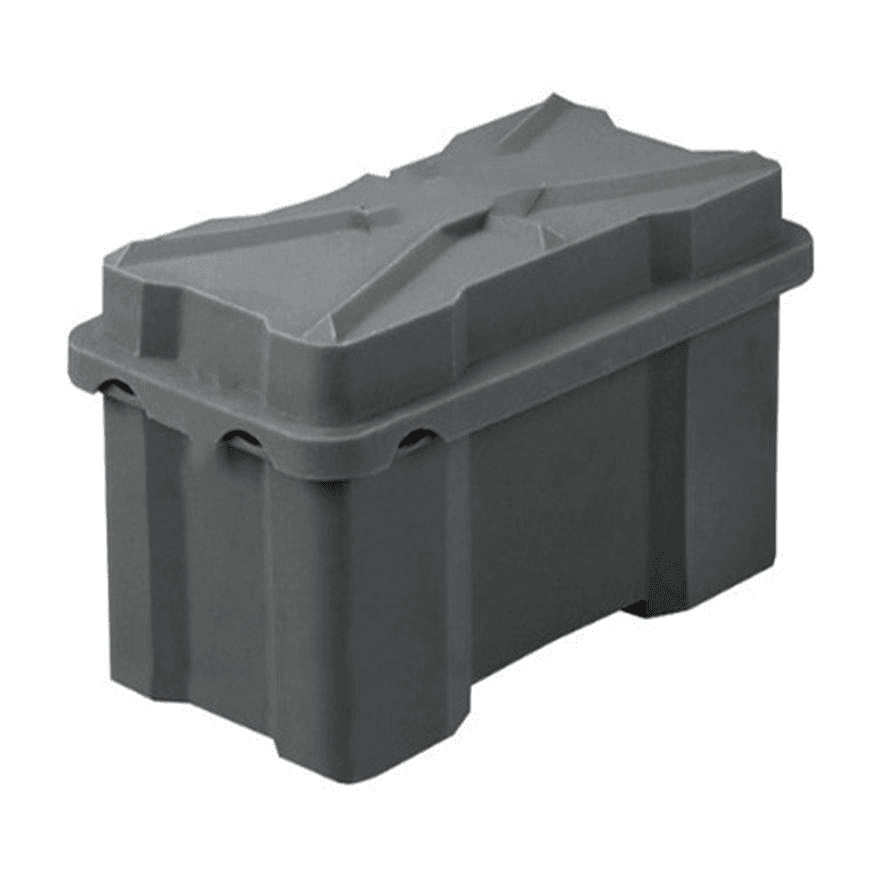

- PE Single-Layer Battery Box — maximum internal volume utilisation, extreme lightweight advantage, and accelerated heat dissipation for the internal battery pack. The right choice for standard outdoor cabinets, heavy machinery, and AGVs.
- Double-wall Hollow Structure (PU-foam filled) — the hollow core is injected with polyurethane foam for excellent thermal insulation, minimising battery temperature fluctuations and prolonging cell life. In marine operations this structure also provides natural buoyancy, preventing the enclosure from sinking instantly if dropped in water.
5. Low tooling cost for custom OEM projects
For large-size, irregularly shaped, or medium-to-small batch orders, rotomoulding aluminium tooling costs are significantly lower than sheet-metal stamping dies. It eliminates welding, grinding, and multi-layer coating processes — making it the most cost-effective choice for OEM energy-storage projects that need dozens to a few thousand units per year rather than a hundred thousand.
Rotomolded vs. metal vs. FRP — side by side
| Feature | Rotomolded PE Battery Box | Sheet-Metal Box | Fibreglass (FRP) Box |
|---|---|---|---|
| Sealing & waterproofing | Seamless, easy IP67 rating | Welding seams risk leaking over time | Adhesive joints degrade and leak |
| Insulation | Naturally non-conductive, high safety | Conductive, requires extra coatings | Insulated, but brittle material |
| Salt-spray resistance | Excellent (5/5) | Rusts quickly (2/5) | Delaminates if scratched (4/5) |
| Impact resistance | High toughness, won't crack | Permanently dents | Cracks or shatters easily |
| Tooling cost (custom / OEM) | Highly cost-effective for custom sizes | Only viable for massive mass production | High labour dependency, limited capacity |
Main applications
- Industrial & heavy machinery — heavy-duty electric vehicle battery packs, agricultural machinery, and AGV PE Single-Layer Battery Box systems requiring light weight and high impact strength.

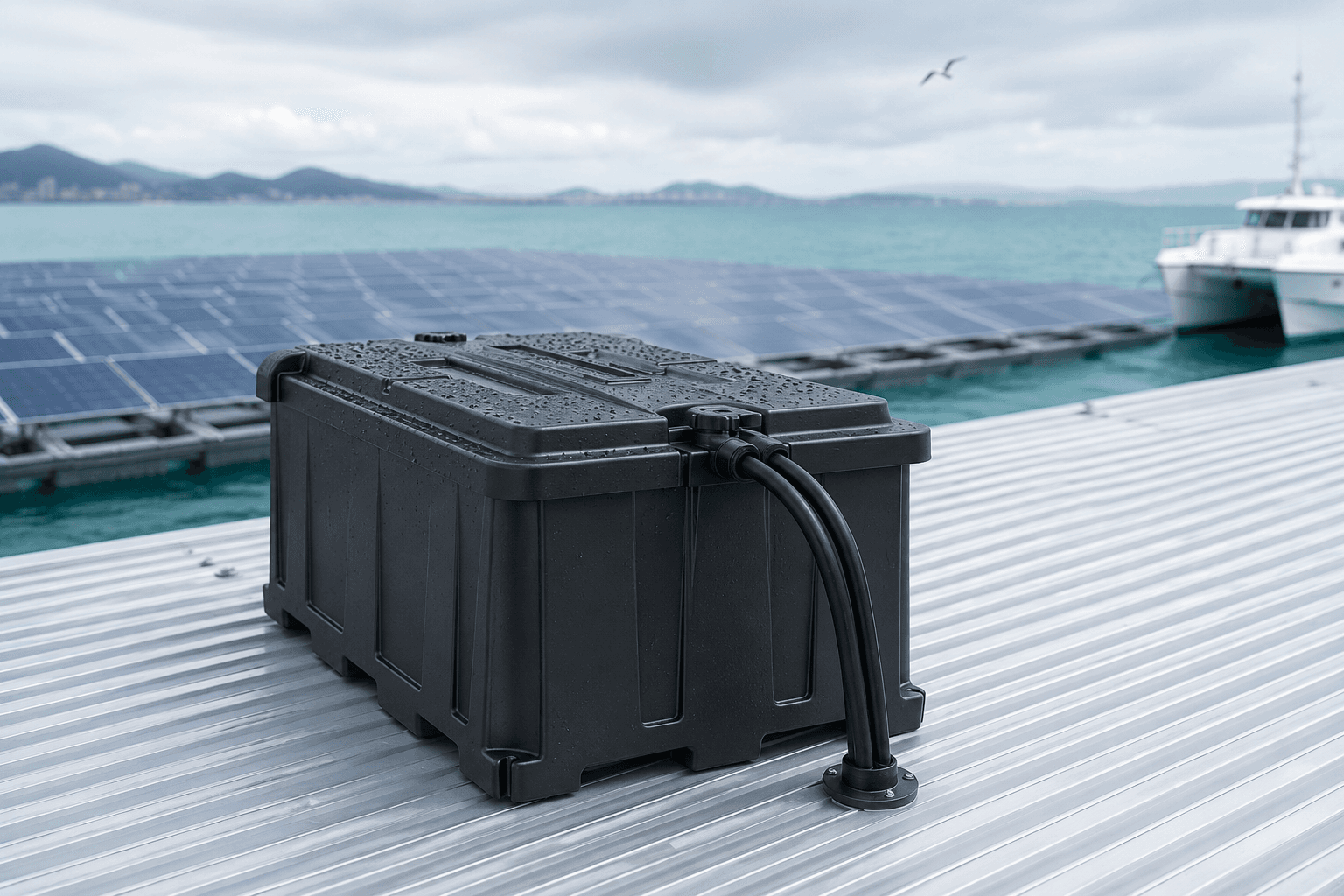

- Marine & offshore — marine energy-storage systems, fishing-boat batteries, offshore floating solar ESS (the outright best choice for salt-spray environments).
- Off-grid storage — remote islands, mountain off-grid power stations, and telecom base stations.
- Emergency power — large outdoor emergency power supplies and mobile energy-storage trailers.
Custom OEM options
- Material upgrades — UL94-V0 flame-retardant LLDPE, cross-linked polyethylene (XLPE).
- Functional integration — moulded-in stainless-steel threaded inserts, integrated sealing slots, waterproof cable-entry platforms, and heavy-duty lifting bases.
- Aesthetics & protection — custom colours, enhanced anti-UV formulas, stainless-steel latches, and anti-ageing gaskets.
Sourcing
Luban Rotomold takes OEM and ODM battery-enclosure orders worldwide, with sample lead times of 1-2 weeks after mould completion and full production runs of 3-4 weeks. Reach the sales team via the contact page or the Alibaba storefront listed in the site footer for technical specifications, sample pricing, or a full custom-tooling quote.
